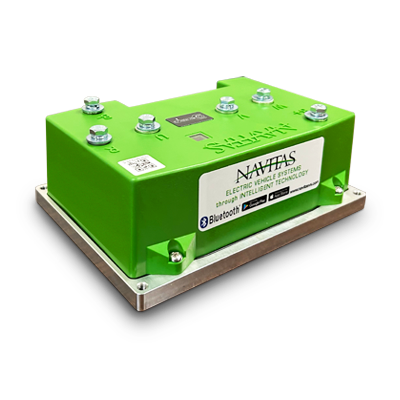

TAC 2 - AC

INDUCTION SYSTEM

UNLEASH YOUR GOLF CAR'S POTENTIAL

More Speed | Greater Efficiency | Easy to Install | Affordable

MORE SPEED

Bypass all the OEM codes and increase the speed and power of your car with our new DC to AC conversion kits.

GREATER EFFICIENCY

Two new compact AC systems (440 and 600 Amp) offer more miles per charge with better performance

EASY TO INSTALL

Low profile controller with smaller overall footprint installs quickly and easily - no need for cutting or modifying your existing mounting plate or controller cover.

AFFORDABLE

Low system cost and higher mileage per charge economic efficiencies for your customer.

FEATURES

440A-600A state of the art Mosfet technology
Compact size and low weight
Regenerative braking
Molex waterproof connector
Thermal protection
Sensor less motor thermal protection
Under voltage protection
Fully sealed IP5X
A/B speed sensor inputs
OEM multi-platform mounting options
Plug & Play installation for major OEM golf cars
Rollback protection
Speed-limiting (w/ optional speed sensor)
Compatible with Navitas On-The-Fly (OTF) programmer (optional)

APPLICATIONS

Golf cars
Low Speed Vehicles (LSV)
Utility Vehicles (UTV)
Hunting Buggies

OUTPUT CAPABILITY

Up to 600A

BATTERY VOLTAGE

48 to 72 Volt

BONUS FEATURES

BLUETOOTH®

Live Bluetooth® Telemetry
Downloadable on iOS & Android
BlueTooth Lockout Enabled
Monitor "Live" Battery Status
Battery Watering Reminders
Error Messages emailed to Dealer
Technician & Cart Owner Apps

OPTIONAL AC MOTOR

(Required for TXT® and Precedent® models)

Powerful 5 kW AC Motor
Increased Speed and Torque
Make your vehicle feel new again!

See Technical Sheet

SYSTEMS

AC Golf Cart Drive Systems

AC INDUCTION

TAC2 440A 48-72V

AC Controller Packages w/ Bluetooth

E-Z-GO RXV TAC2 440A (Curtis - 1206AC)

10-000879-01

10-000878-01 – TAC2 Controller 440A w/ Bluetooth
- 40-000620 – TAC2 RXV Curtis 1206AC Module (Installed)
40-000583 – Cable for RXV

(Note – Not compatible with EZGO Lithium Elite Series)

E-Z-GO RXV23 TAC2 440A (Danaher)

10-000879-02

10-000878-02 – TAC2 Controller 440A w/ Bluetooth
- 40-000623 – TAC2 RXV23 Danaher Module (Installed)
20-001844 – TAC RXV23 Mounting Plate Kit
10-000843 – Hardware Mounting Kit
40-000582 – Wiring for RXV23 resistor

EZ-GO L6/S4 TAC2 72V 440A (Curtis - 1234SE AC)

10-000879-05

10-000878-05 - TAC2 Controller 440A w/Bluetooth
- 40-000651 - TAC2 EZGO L6 Module (Installed)

(Note – Not compatible with EZGO Lithium Elite Series)

Yamaha Drive2 YDRE2 TAC2 440A (AC Induction) (Neos)

10-000889-01

10-000888-01 – TAC2 Controller 440A w/ Bluetooth
- 40-000627 – TAC2 YDRE2 Neos Module (Installed)
40-000583 – Battery Cable
10-000833 – Hardware Mounting Kit

ICON NEOS TAC2 440A (AC Induction) (Neos)

10-000889-14

10-000888-14 - TAC2 Controller 440A w/Bluetooth
- 40-000706 - TAC2 ICON Module (Installed)
10-000833 - Hardware Mounting Kit
40-000583 - Battery Cable

Club Car IQ, Precedent, Excel, Onward 4KW TAC2 440A (Curtis 1510-1515)

DC to AC Conversion Kit

10-000889-02

10-000888-02 – TAC2 Controller 440A w/ Bluetooth
- 40-000621 – TAC2 Club Car Curtis 1510/1515 Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000834 – Hardware Mounting Kit
10-000815 – Navitas 4KW (10T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Not currently compatible with Models built after December 2021

See Bulletin

E-Z-GO TXT48 4KW TAC2 440A (Curtis 1206HB)

DC to AC Conversion Kit

10-000889-03

10-000888-03 – TAC2 Controller 440A w/ Bluetooth
- 40-000622 – TAC2 TXT48 Curtis 1206HB Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000834 – Hardware Mounting Kit
10-000816 – Navitas 4KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
20-001603 – Run/Tow Switch Mounting Plate

(Note – Not compatible with EZGO Lithium Elite Series)

E-Z-GO S4, L6, MPT 4KW TAC2 440A (Curtis 1268 ITS)

DC to AC Conversion Kit

10-000889-05

10-000888-05 – TAC2 Controller 440A w/ Bluetooth
- 40-000625 – TAC2 EZ-GO 1268 ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000816 – Navitas 4KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
10-000834 – Hardware Mounting Kit

(Note – Not compatible with EZGO Lithium Elite Series)

Club Car Carryall 4KW TAC2 440A (Curtis 1268 non-ITS)

DC to AC Conversion Kit

10-000889-06

10-000888-06 – TAC2 Controller 440A w/ Bluetooth
- 40-000626 – TAC2 Curtis 1268 non-ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000815 – Navitas 4KW (10T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Yamaha YDRE G29 4KW TAC2 440A (Moric)

DC to AC Conversion Kit

10-000889-09

10-000888-09 – TAC2 Controller 440A w/ Bluetooth
- 40-000632 – TAC2 G29 Moric Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000816 – Navitas 4KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
40-000536 – Ring Terminal for A2 Cable
10-000833 – Hardware Mounting Kit

StarEV (48V) 4KW TAC2 440A (1268 non-ITS)

DC to AC Conversion Kit

10-000889-08

10-000888-06 – TAC2 Controller 440A w/ Bluetooth
- 40-000626 – TAC2 Curtis 1268 non-ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000816 – Navitas 4KW (19T) AC Motor
10-000834 – Hardware Mounting Kit
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Navitas TSX2.0/3.0 4KW TAC2 440A (Navitas)

DC to AC Conversion Kit

10-000889-04

10-000888-04 – TAC2 Controller 440A w/ Bluetooth
- 40-000624 – TAC2 Navitas TSX Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000816 – Navitas 4KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

TAC2 600A 48-72V

AC Controller Packages w/ Bluetooth

E-Z-GO RXV TAC2 600A (Curtis 1206AC)

10-000881-01

10-000880-01 – TAC2 Controller 600A w/ Bluetooth
- 40-000620 – TAC2 RXV Curtis 1206AC Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
40-000583 – Cable for RXV
- (Note – Not compatible with EZGO Lithium Elite Series)

(Note – Not compatible with EZGO Lithium Elite Series)

E-Z-GO RXV23 TAC2 600A (Danaher)

10-000881-02

10-000880-02 – TAC2 Controller 600A w/ Bluetooth
- 40-000623 – TAC2 RXV23 Danaher Module (Installed)
10-000843 – Hardware Mounting Kit
10-000686 – OTF1.0 Programmer (3.75m cable)
40-000582 – Wiring for RXV23 Resistor

EZ-GO L6/S4 TAC2 72V 600A (Curtis - 1234SE AC)

10-000881-05

10-000880-05 - TAC2 Controller 600A w/Bluetooth
- 40-000651 - TAC2 EZGO L6 Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)

(Note – Not compatible with EZGO Lithium Elite Series)

Yamaha Drive2 YDRE2 TAC2 600A (AC Induction) (Neos)

10-000891-01

10-000890-01 – TAC2 Controller 600A w/ Bluetooth
- 40-000627 – TAC2 YDRE2 Neos Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
40-000583 – Battery Cable
10-000833 – Hardware Mounting Kit

ICON NEOS TAC2 600A (AC Induction) (Neos)

10-000891-14

10-000890-14 - TAC2 Controller 600A w/Bluetooth
- 40-000706 - TAC2 ICON Module (Installed)
10-000833 - Hardware Mounting Kit
40-000583 - Battery Cable
10-000686 – OTF1.0 Programmer (3.75m cable)

Club Car IQ, Precedent, Excel, Onward 5KW TAC2 600A (Curtis 1510-1515)

DC to AC Conversion Kit

10-000891-02

10-000890-02 – TAC2 Controller 600A w/ Bluetooth
- 40-000621 – TAC2 Club Car Curtis 1510/1515 Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000834 – Hardware Mounting Kit
10-000823 – Navitas 5KW (10T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Not currently compatible with Models built after December 2021

See Bulletin

E-Z-GO TXT48 5KW TAC2 600A (Curtis 1206HB)

DC to AC Conversion Kit

10-000891-03

10-000890-03 – TAC2 Controller 600A w/ Bluetooth
- 40-000622 – TAC2 TXT48 Curtis 1206HB Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000834 – Hardware Mounting Kit
10-000822 – Navitas 5KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
20-001603 – Run/Tow Switch Mounting Plate

(Note – Not compatible with EZGO Lithium Elite Series)

E-Z-GO S4, L6, MPT 5KW TAC2 600A (Curtis 1268 ITS)

DC to AC Conversion Kit

10-000891-05

10-000890-05 – TAC2 Controller 600A w/ Bluetooth
- 40-000625 – TAC2 Curtis 1268 ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)

(Note – Not compatible with EZGO Lithium Elite Series)

Club Car Carryall 5KW TAC2 600A (Curtis 1268 non-ITS)

DC to AC Conversion Kit

10-000891-06

10-000890-06 – TAC2 Controller 600A w/ Bluetooth
- 40-000626 – TAC2 Curtis 1268 non-ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000823 – Navitas 5KW (10T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
10-000834 – Hardware Mounting Kit

Columbia Par Car (CVG) 4KW TAC2 600A (Sevcon Millipak)

DC to AC Conversion Kit

10-000891-07

10-000890-07 - TAC2 Controller 440A w/ Bluetooth
- 40-000649 - TAC2 CPC/CVG Module (Installed)
10-000686 - OTF1.0 Programmer
10-000816 - Navitas 4KW (19T) AC Motor
40-000584 - AC Motor Phase Cable
40-000580 - Motor Sensor Cable

Yamaha YDRE G29 4KW TAC2 600A (Moric)

DC to AC Conversion Kit

10-000891-09

10-000890-09 – TAC 2 Controller 600A w/ Bluetooth
- 40-000632 – TAC2 G29 Moric Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000816 – Navitas 4KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable
40-000536 – Ring Terminal for A2 Cable
10-000833 – Hardware Mounting Kit

StarEV (48V) 5KW TAC2 600A (1268 non-ITS)

DC to AC Conversion Kit

10-000891-08

10-000890-06 – TAC2 Controller 600A w/ Bluetooth
- 40-000626 – TAC2 Curtis 1268 non-ITS Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000822 – Navitas 5KW (19T) AC Motor
10-000834 – Hardware Mounting Kit
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Navitas TSX2.0/3.0 5KW TAC2 600A (Navitas)

DC to AC Conversion Kit

10-000891-04

10-000890-04 – TAC2 Controller 600A w/ Bluetooth
- 40-000624 – TAC2 Navitas TSX Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000822 – Navitas 5KW (19T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Club Car IQ, Precedent, Excel, Onward 4KW TAC2 600A (Curtis 1510-1515)

DC to AC Conversion Kit

10-000891-12

10-000890-02 – TAC2 Controller 600A w/ Bluetooth
- 40-000621 – TAC2 Club Car Curtis 1510/1515 Module (Installed)
10-000686 – OTF1.0 Programmer (3.75m cable)
10-000834 – Hardware Mounting Kit
10-000815 – Navitas 4KW (10T) AC Motor
40-000584 – AC Motor Phase Cable
40-000580 – Motor Sensor Cable

Not currently compatible with Models built after December 2021

See Bulletin
